Supplying used food processing machinery since 1952, with over six warehouses of used food processing machinery & equipment IN STOCK!

ALARD EQUIPMENT CORPORATION
6483 Lake Avenue
Williamson, NY 14589 U.S.A.
315-589-4511(voice) 315-589-3871(fax)

FOOD PROCESS METAL DETECTOR
with BELT CONVEYOR,
20x11 opening,
food grade, stainless steel...

Click on picture(s) to enlarge!

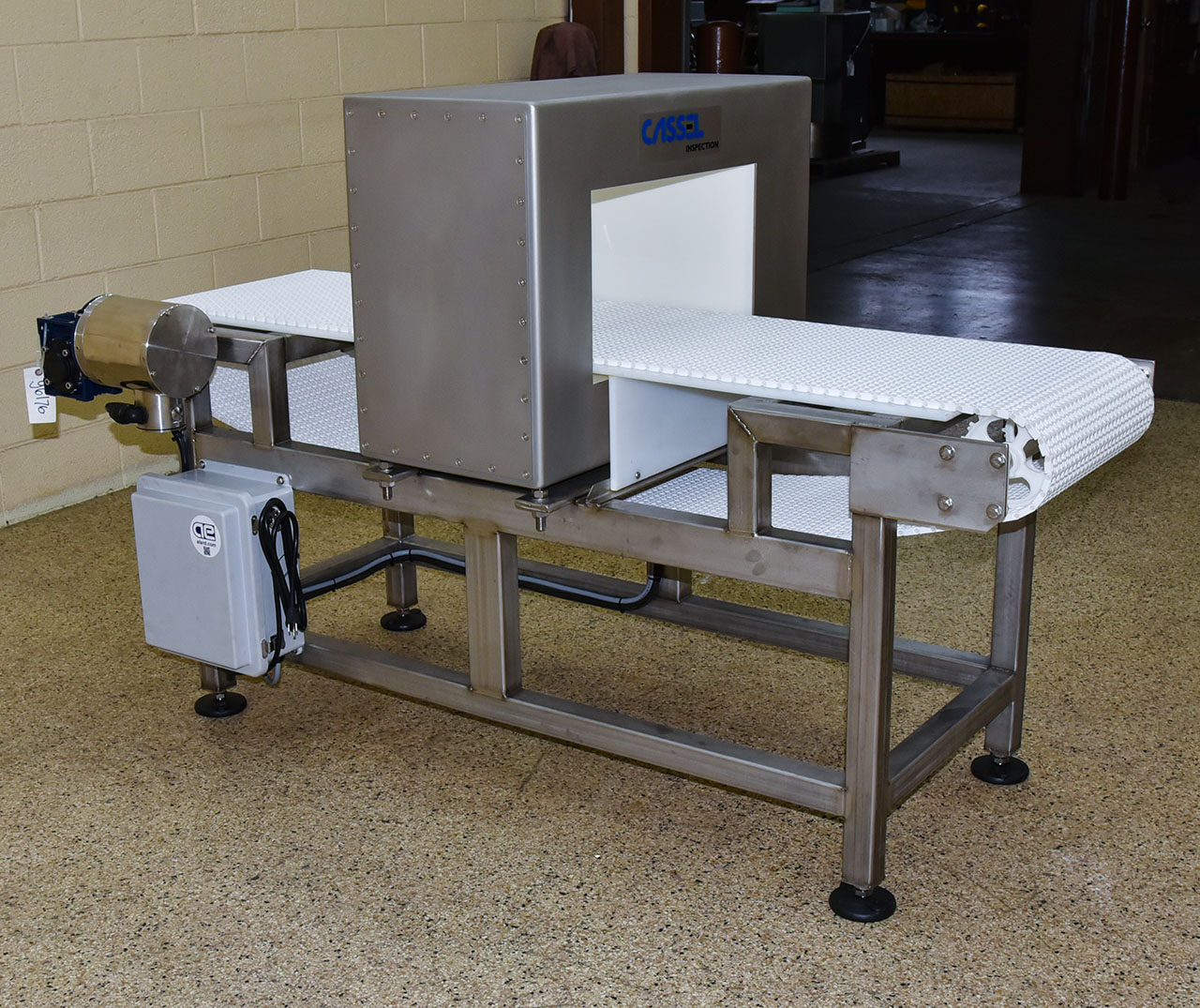

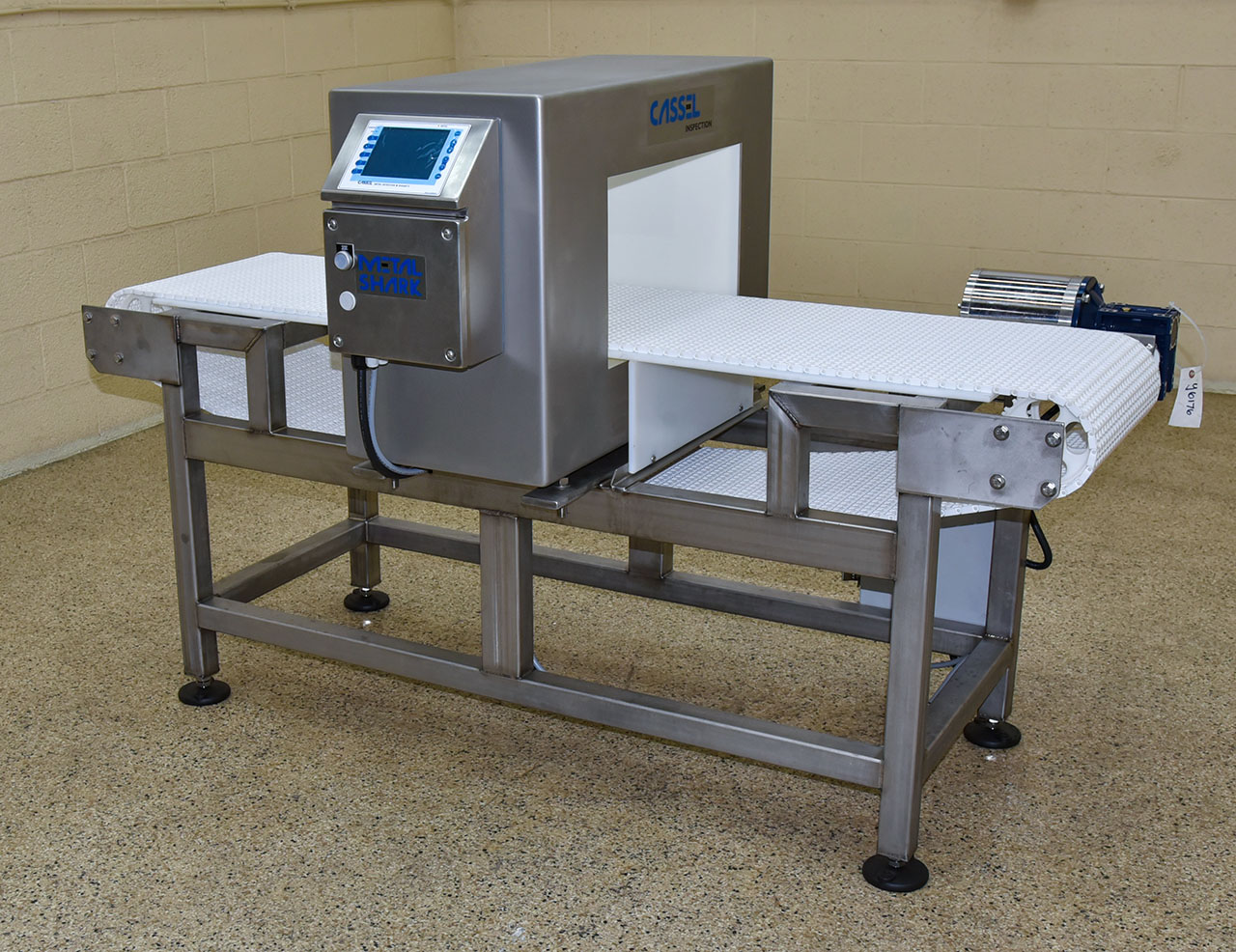

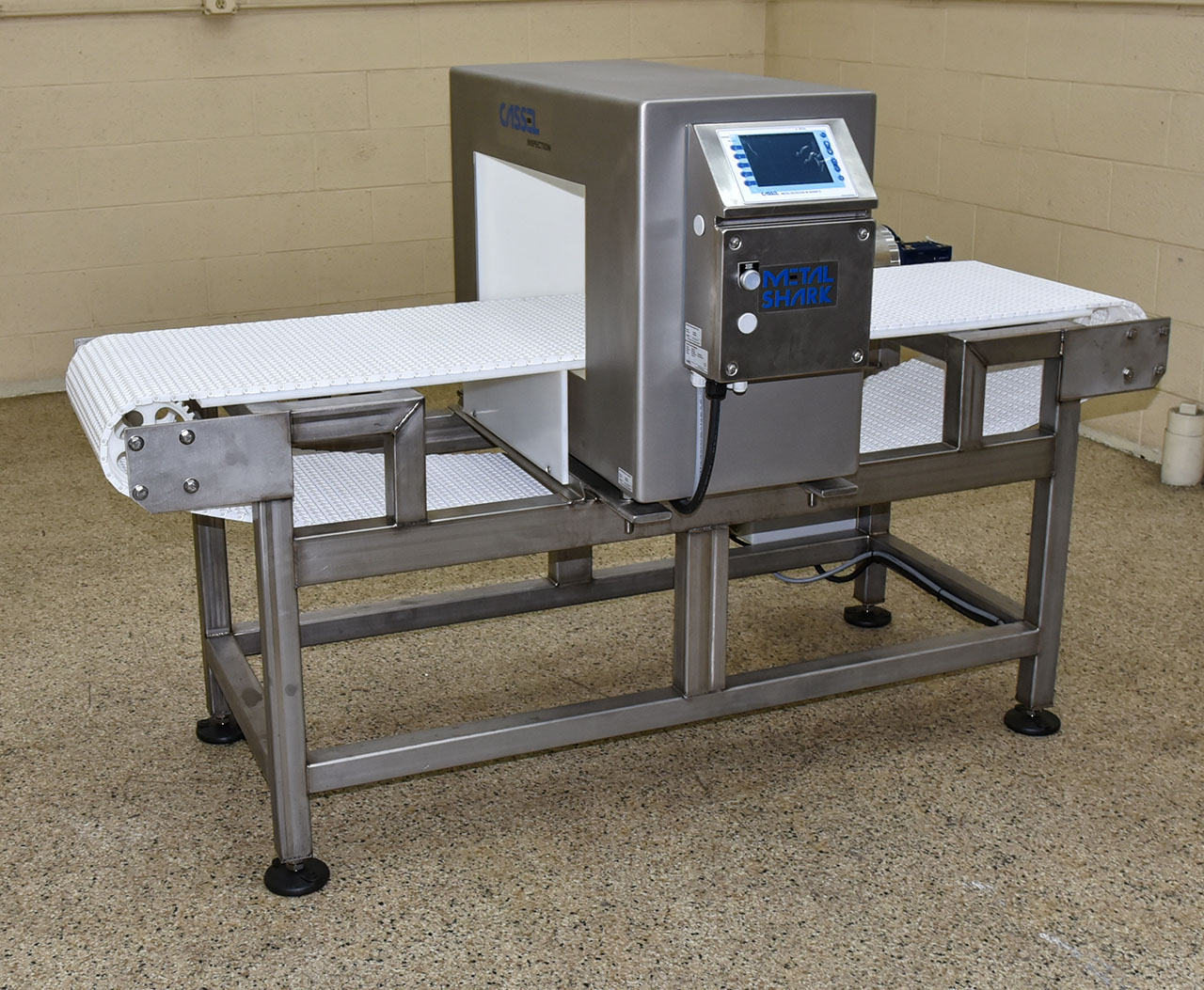

...a Cassel Metalshark2 MULTI-FREQUENCY washdown sealed stainless steel conveyorized metal detection system for industrial process applications.

FEATURES:

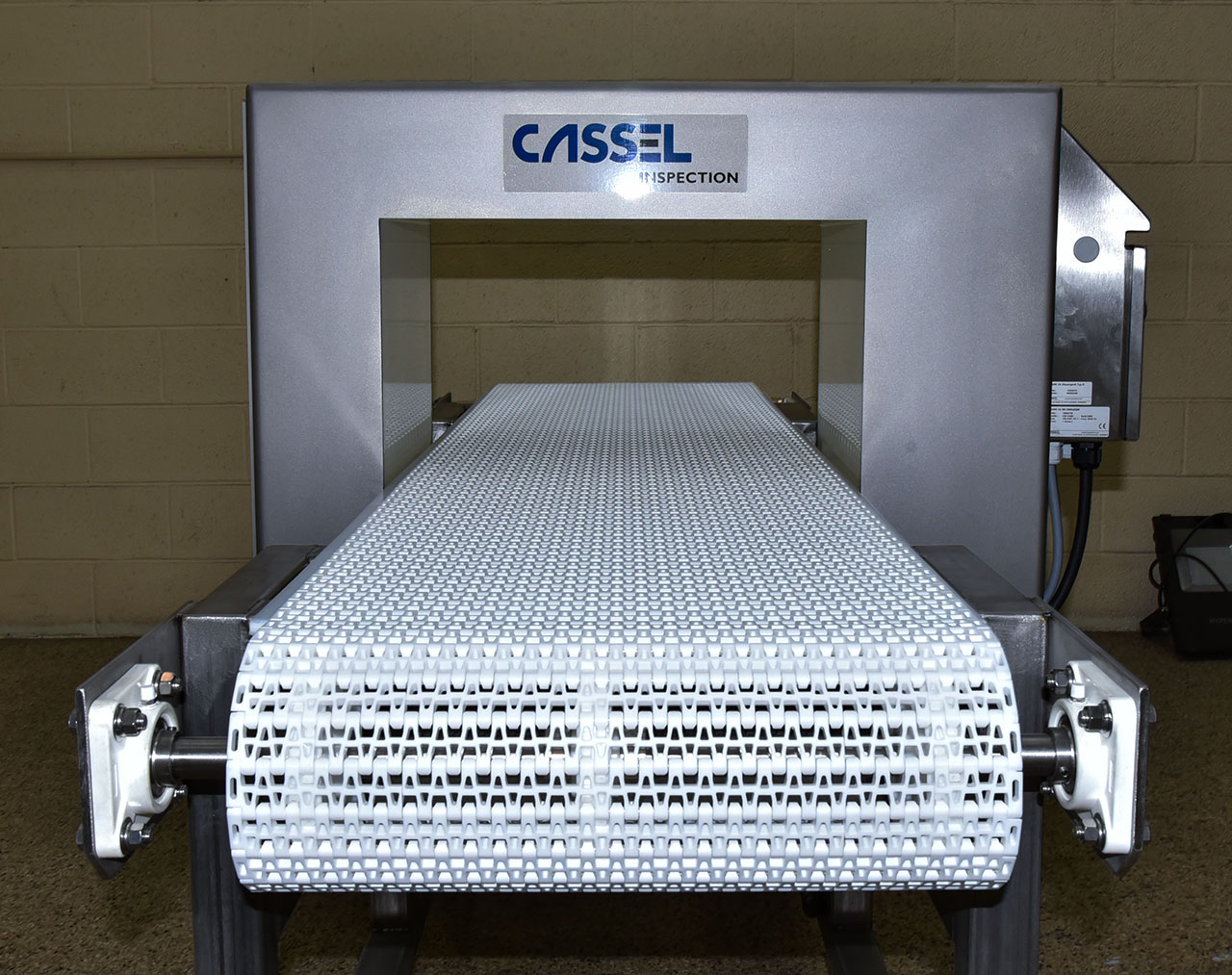

10 7/8 inch (275mm) high by 19 11/16 inch (500mm) wide net USABLE aperture opening with the conveyor belt in place.
The 304 stainless steel frame washdown belt transfer conveyor has a 73 inch (1854mm) long by 17 9/16 inch (446mm) wide interlocking plastic chain type belt, running at a 30 inch (762mm) working height, with adjustable feet allowing an additional 5 inch (127mm) height adjustment up.

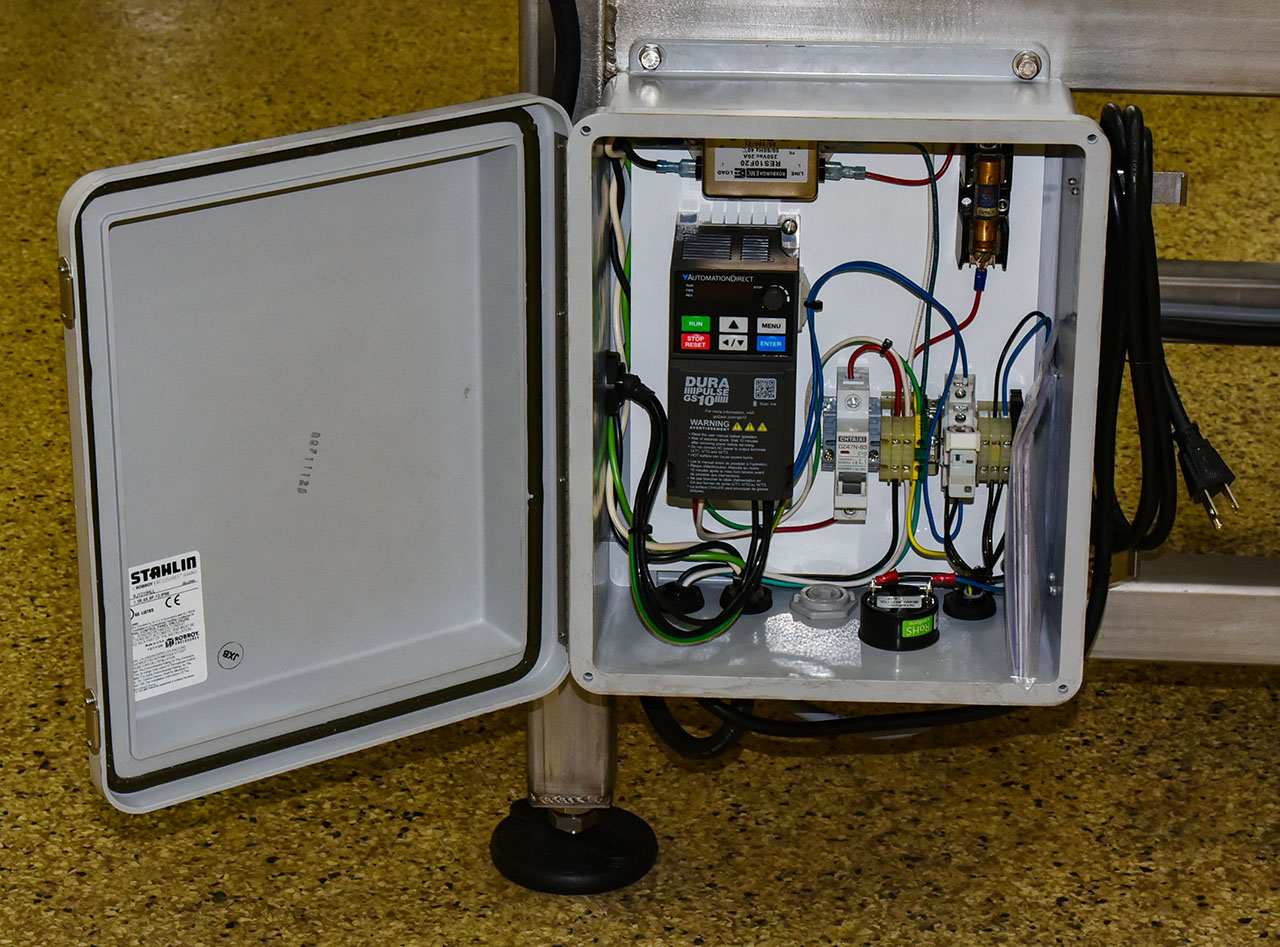

The thru-conveyor is complete with a belt-stop alarm reject configuration, and a variable frequency speed control for the 110 volt single phase drive, adjustable from 16 to 75 feet per minute (approximately 5 to 23 meters per minute) belt speed.
A food grade metal detector specifically built for food processing and other industrial production line metal detection applications. All food grade / USDA sanitary hose-wash-down stainless steel construction (IP-67/NEMA 6 search head enclosure, IP-65/Nema 4,4x,6,12 & 13 control enclosure).
The search head is complete with integral touchpad operator controls with a 5.4 inch color screen, including RS-232 and RS-485 serial data acquisition ports, and ethernet data interface, in a stainless steel enclosure. Optional data logging software is available for tracking and reporting for HACCP and other quality assurance and certification regimes.
110 volt single phase (standard household current) electrical input.
FOUR FREQUENCY LEVELS (35kHz, 75kHz, 150kHz, and 300kHz), allowing for optimal sensitivity across an exceptionally wide range of products / product types (wet, dry, salty, meat, fruits, vegetables, fresh, frozen, hot, cold, etc.) allowing for maximum versatility with the widest range of products. The optimal frequency is automatically set by the system in "product learn" mode to maximize sensitivity / minimize false rejects with your specific product.

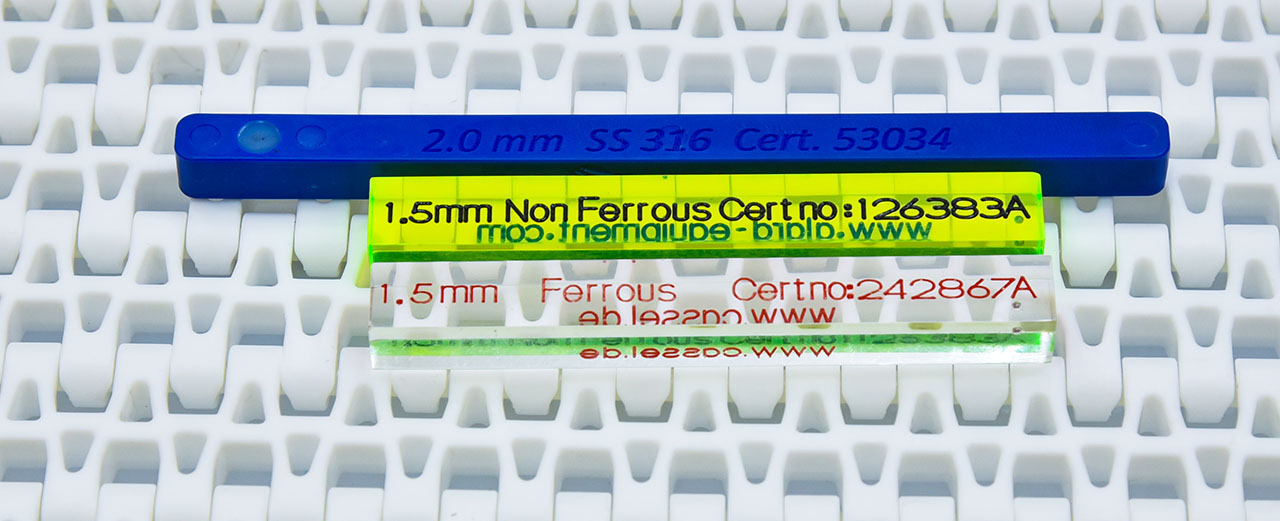

Sensitivity varies depending on product run, and frequency setting (determined by product characteristics), especially where wet, salty, or acidic products that are electrically conductive introduce "product effect" into the equation, however the manufacturer rates dry sensitivity for this head, with no product in the aperture, at a maximum sensitivity of 2.0mm ferrous, 3.0mm non ferrous, and 3.5mm stainless steel at 300 kHz.
Quick teach feature learns new products in 4 to 7 passes.

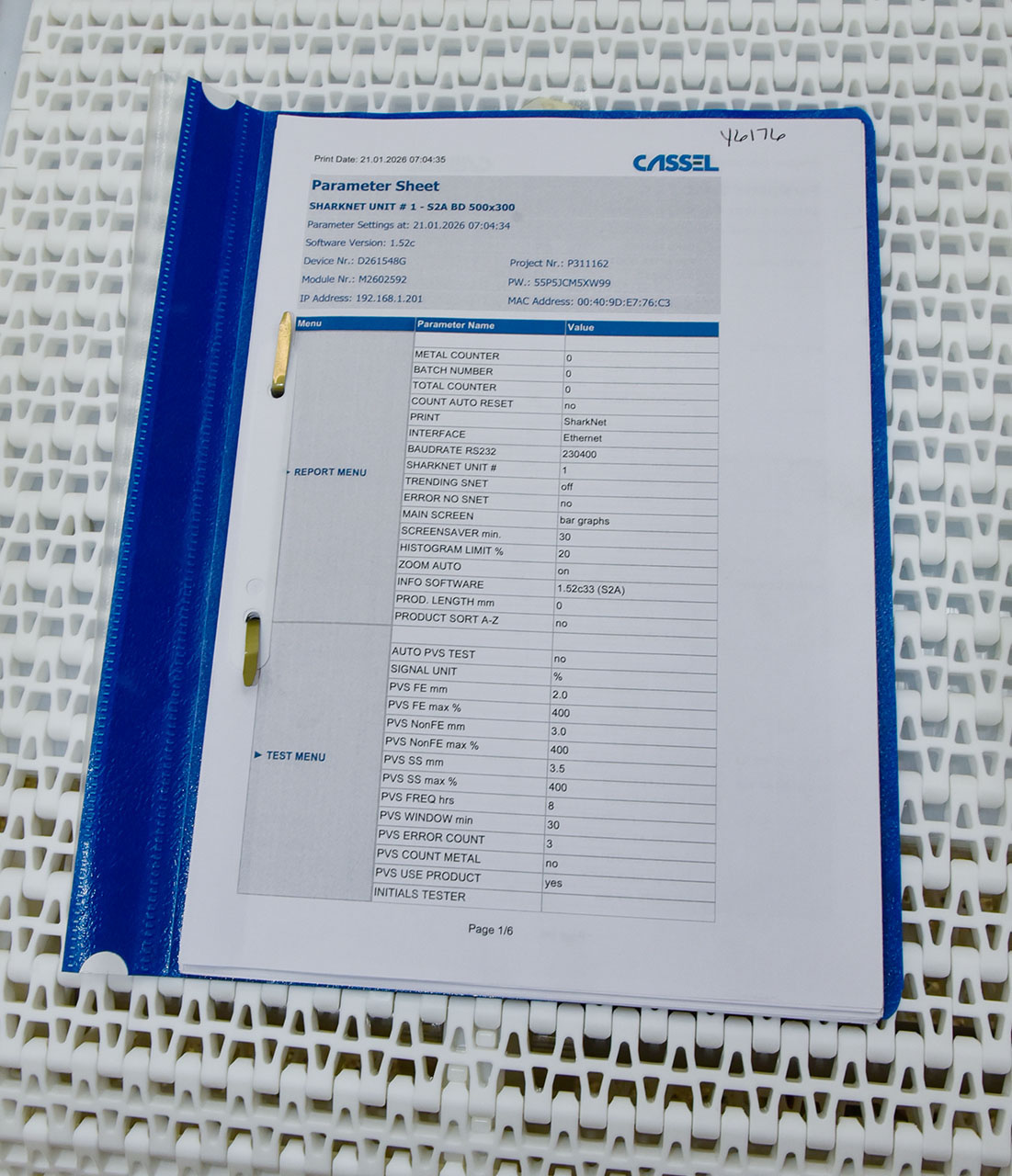

The control unit allows for 120 product presets, where product presets save the frequency setting with the other tuning data.
Single control board technology with all control electronics on one circuit board maximizes reliability, and minimizes maintenance expenses.
Food grade sanitary 304 stainless steel search head and conveyor construction.
NEW EQUIPMENT - Includes a 2 year manufacturer warranty on hardware / parts.

As of this writing, this food process metal detection system is new IN stock at ALARD, available for immediate shipment.

CALL 315-589-4511 to confirm availability and discuss your specific industrial process metal detector needs.

Alard item reference #: Y6176

Unless otherwise stated, volume, speed, and/or capacity estimates given are those of the manufacturer(s) of the equipment. All offers are subject to prior sales and owner's confirmations. Unless otherwise specified, any prices shown do not include skidding, crating, or freight.
