March 2020 Archives

Commercial NS-26 SLICER, shredder for slaw, kraut, sandwich shreds, Y4497


COMMERCIAL CABBAGE CUTTER, 26 INCH,
industrial-capacity food grade stainless steel vegetable
SLICER / SHREDDER / STRIP CUTTER...




A Commercial Slicer Model 26NS, also known as a "Waterfall" slicer or Kibbey cutter, has long been the mainstay of the coleslaw and sauerkraut industries. Manufacturer recommended for lettuce, cabbage, onions, peppers, cucumbers, potatoes,carrots, tomatoes and celery...


FEATURING:

  • 26 inch diameter aluminum frame cutting disk with stainless steel knives; 100% cutting surface.

  • y4497g_crop_email.jpg"Three cup" counter-rotating aluminum carrying arm pusher-plow to prevent rolling and maximize throughput capacity.

  • Open infeed to easily accept heads of cabbage, lettuce and other whole vegetable products (up to 9 inch diameter).

  • Manufacturer rated for up to 25,000 pounds per hour, depending on cut size and product.

  • A range of cutting disk and blade configurations are available for one and two-dimensional cutting (slices, strip cuts, julienne cuts) in thicknesses from 1/32 to 2 inch and up to 5 inch in length. Grater blades are also available forshredding carrots, slaw, onions, and other fresh vegetables. CALL 315-589-4511 to discuss your particular industrial food process vegetable cutting / cut size specification.

  • Food grade stainless steel construction, including tubular stainless steel frame, with 52 inch infeed height and 19.5 inch high discharge and funneled discharge with 24 inch by 24 inch discharge opening.

  • y4497a_crop_email.jpgComplete with two (2) 1.5HP gear motor drives - one for main cutting wheel and the other powers plow.

  • 230/460 volt 3 phase electrical input.


As of this writing this high-capacity industrial slicing and strip cutting machine is in stock at ALARD, in good condition, available for timely shipment.

CALL 315-589-4511 to confirm availability and discuss your food process fruit and vegetable slicing and strip cutting needs.

ALARD item reference #: Y4497



Food METAL DETECTOR with CONVEYOR, 20x11, wash-down stainless steel, Y4362


FOOD PROCESS METAL DETECTOR with BELT CONVEYOR,
20x12, wash-down, all stainless steel...




A Cassel Metalshark2 MULTI-FREQUENCY washdown sealed stainless steel conveyorized metal detection system for industrial process applications, with...


FEATURES:

  • 10 7/8 inch (275mm) high by 19 11/16 inch (500mm) wide net USEABLE aperture opening with the conveyor belt in place...

  • The 304 stainless steel frame washdown belt transfer conveyor has a 71.5 inch (1800mm) long by 17 9/16 inch (450mm) wide interlocking plastic chain type belt, running at a 30 inch (762mm) working height, with adjustable feet allowing +/- 4 inch (100mm) height adjustment.

  • y4362d_crop_email.jpgThe thru-conveyor is complete with a belt-stop alarm reject configuration, and a variable speed control for the 110 volt single phase drive, adjustable from 16 to 75 feet per minute (approximately 5 to 23 meters per minute) belt speed.

  • A food grade metal detector specifically built for food processing and other industrial production line metal detection applications. All food grade / USDA sanitary hose-wash-down stainless steel construction (IP-67/NEMA 6 search head enclosure, IP-65/Nema4,4x,6,12 & 13 control enclosure).

  • y4362g_crop_email.jpgThe search head is complete with integral touchpad operator controls with a 5.4 inch color screen, including RS-232 and RS-485 serial data acquisition ports, and ethernet data interface, in a stainless steel enclosure. Optional data logging software is available for tracking and reporting for HACCP and other quality assurance and certification regimes.

  • 110 volt single phase (standard household current) electrical input.

  • FOUR FREQUENCY LEVELS (35kHz, 75kHz, 150kHz, and 300kHz), allowing for optimal ensitivity across an exceptionally wide range of products / product types (wet, dry, salty, meat, fruits, vegetables, fresh, frozen, hot, cold, etc) allowing for maximum versatility with the widest range of products. The optimal frequency is automatically set by the system in "product learn"mode to maximize sensitivity / minimize false rejects with your specific product.

  • y4362h_crop_email.jpgSensitivity varies depending on product run, and frequency setting (determined by product characteristics), especially where wet, salty, or acidic products that are electrically conductive introduce "product effect" into the equation, however the manufacturer rates dry sensitivity for this head, with no product in the aperture, at a maximum sensitivity of 1.7mm ferrous, 2.3mm non ferrous, and 2.7mm stainless steel at 300 kHz.

  • Quick teach feature learns new products in 4 to 7 passes.

  • The control unit allows for 120 product presets, where product presets save the frequency setting with the other tuning data.

  • Single control board technology with all control electronics on one circuit board maximizes reliability, and minimizes maintenance expenses.

  • 304 stainless steel search head and conveyor construction.

  • NEW EQUIPMENT - Includes a 2 year manufacturer warranty on hardware / parts.


As of this writing we have this metal detection system IN stock NEW available for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular industrial process metal detection need.

Alard item reference #: Y4362

Brown model 202 PADDLE FINISHER, Y4517


BROWN 202 PADDLE FINISHER
separator, pulper,
stainless steel...



This Brown International model 202 PADDLE FINISHER, pulper, refiner, separator, is manufacturer recommended for extracting juices and purees from fruits & vegetables, and separate fruit flesh (pulp) from fruit pits, seeds and/or other solids (stems, skins).


OPERATION:


This make / model pulping / finishing machine uses spinning paddles turning inside a perforated screen. The screens are interchangeable, and the perforation size of the screen determines the "finish" of (amount of pulp in) the product.

y4517h_crop_email.jpgLiquids (and pulp) that pass through the screen are collected in a bottom discharge pan while the solids (pits, seeds, skins) remaining inside the screen are discharged out the end.

Manufacturer recommended for industrial capacity food processing of apricots, pumpkin & squash, pears, apple, plums, prunes, figs, citrus juices, jam, soup, peanut butter, jelly and fruit nectar...



FEATURES:

  • Manufacturer rated for input rates of up to 120 gallons per minute.

  • 7 inch by 12 inch bolt-flanged infeed with a (bolted-on) 4 inch Tri-clamp connection and 3 inch tube inlet. A different infeed configuration could easily be made to bolt on to replace the existing setup.

  • y4517g_crop_email.jpgCurrently configured with 1/8 inch perforated screen -- other sizes available, CALL 315-589-4511 to discuss your pulper-finisher-separator needs.

  • Solid paddles are individually adjustable for distance to screen.

  • Stainless steel hinged side covers.

  • Bottom collection pan with 4 inch Tri-clamp outlet.

  • 5 inch by 12 inch end solids discharge at 30 inches high.

  • Food grade sanitary stainless steel construction.

  • y4517k_crop_email.jpg30 HP belt drive motor.

  • 208 / 230 / 460 volt 3 phase electrical input.

  • Currently bolted onto (and removable from) painted steel I-beam riser frame.


As of this writing, this paddle finisher is in stock at ALARD, in VERY GOOD operational, mechanical & cosmetic condition available for immediate shipment -OR- can be (at additional cost) outfitted with a stainless steel frame by our shop for timely shipment.

CALL 315-589-4511 to confirm availability and discuss your particular industrial fruit and vegetable processing pulping and finishing equipment needs.

ALARD item reference #: Y4517

8 inch FOOD PUMP with stainless steel tank and motor drive, Y4325


8-inch HYDRO TRANSPORT FOOD PUMP
with STAINLESS STEEL VORTEX TANK
and MOTOR-DRIVE.


Food grade pump-in-water conveyor / flume kit including Cornell 8-inch food pump, integrated with a CMI feed tank, and motor-drive. Pump whole or cut food products via pipe flume or open sluice, to cool, wash, rinse, sanitize, and/or apply preservative solutions while conveying horizontally and/or vertically for long or short distances. Ideal for food processing applications such as fruit and vegetable washing, fresh-cut / pre-cut produce hydro-cooling and chilling applications, and/or pre-heating prior to cutting, peeling, etc; including shredded lettuce and cabbage, cut romaine, whole or cut potatoes, french fries, potato chips, live fish (!), cranberries, carrots, apples, cherries, peas, broccoli, crayfish, shrimp, lettuce, green beans, nuts, peppers, olives, cucumbers, raisins, beans, corn, peaches, beets, oranges, and more.

FEATURES:

  • y4325v_crop_email.jpgCornell 8NHPP-F18K cast-iron hydro flow food pump eight-inch inlet and outlet. Stainless steel body pump also available; --call 315-589-4511 do discuss your specific requirements.

  • Manufacturer rated for solids handling ability for product sized up to 5 inch diameter by 9 inches in length. Larger diameter pumps are available for larger product sizes; --call 315-589-4511 do discuss your specific application requirements.

  • Expanded volute PP series pump for the ultimate in gentle handling of delicate food products. So gentle the manufacturer rates for pumping live fish!

  • Specifically designed and built for industrial food processing application use, with tons-per-hour throughput capacity.

  • Manufacturer recommends 2 or 3 to 1 ratio of water to product, with your product capacity determined by horsepower, RPM, and total dynamic head resistance. Pump curves are available by request; --call 315-589-4511 do discuss your specific application requirements.

  • y4325l_crop_email.jpgCMI stainless steel in-feed tank 48 inches long by 29.5 inches wide by 28 inches deep with a tapered bottom.

    • The tank has a 2.5 inch inner diameter NPT threaded end cleanout drain near the discharge flange end, with a valve.

  • The pump, tank and drive, are integrated, with pump and motor drive on a heavy 4 inch square tubular stainiless steel frame.

  • y4325o_crop_email.jpg7.5 HP 208/230/460 volt 3 phase belt and pulley drive.

  • Previously used as a cooling flume feed pump and configured as we received it; but if you have need for a different configuration, we are dealers for Cornell, and can offer NEW equipment configured to your exact specification; --CALL 315-589-4511 to discuss your precise requirement.


The Cornell hydro transport food pump is frequently employed to power open water flume systems, while others, pump into a closed pipe flume, which they run in a coil pattern on the ceiling to conserve floor space. The flumes provide hold time to remove heat, and extend exposure to the water, which usually includes either a sanitizing agent, or a preservative solution such as vitamin C; depending on the product. The power of the Cornell Hydro-Transport pump allows food producers to deliver their now chilled and treated food products to any point in the plant where they want to dry, mix and pack the final product.

Others use the chill flume for pre-cooling blanched (very lightly cooked to kill the active enzymes) food products in water prior to running them through an IQF freeze tunnel. Others use the cooling flume system just to convey product in water.

In every case, the powerful Cornell pump can gently move high tons-per-hour output to wherever it needs to go in the plant.

Alard also stocks and handles various kinds of dewatering, solids-separation, water recovery and filtration equipment to recover the food product from the pump water, and to recapture, treat and recirculate the water as necessary, as well as drying and packaging equipment to complete the process; all tailored to the end-user's specific food product(s) and application. Call 315-589-4511 to discuss your industrial food processing equipment need.

With Cornell's large range of hydro-transport pump size and material configurations, and with Alard's ability to configure and "gear" the pump to the buyer's specific needs, Alard's Cornell Hydro-Transport based flume kits are a superb tool for a wide variety of industrial food processing applications.

As of this writing, this Cornell food pump flume kit in in stock at Alard, in EXCELLENT operational, mechanical, and cosmetic condition, available for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular hydro food pump application requirements.

Alard item reference #:Y4325

Bock FP-90 SPIN DRYER test run video, Y4000

Reconditined Bock FP-90 SPIN DRYER
TEST RUN VIDEO,

Alard item Y4000


TEST RUN VIDEO
Refurbished Bock FP-90 SPIN DRYER test run,
Y4000
from Alard Equipment Corporation.


The North Star Engineered Products (NSEP) Bock FP-90 Centrifuge is a food grade stainless steel centrifugal drying machine for drying washed fruits and vegetables, including leafy vegetables, whole or cut, in the context of an industrial pre-cut produce packing operation.

FEATURES:

  • 7.36 cubic foot removable basket which measures 30 inches in diameter by 18 inches deep; with a 23 inch top opening.

    • Louvered basket perforations pull moisture out of the basket and away from the product.

    • Lifting "ears" on each side of the basket provide for overhead winch lift-out and easy swivel-dumping action.

  • Manufacturer rated 130 lb (dry weight) batch capacity, and up to 1,950 lbs of product per hour.

  • Food grade stainless steel product contacts including basket, tank, and base, with painted steel legs.

  • Lid-opening assist cylinders (new).

  • Includes (new) operator controls with 10 minute settable timer, and safety interlock system. Machine won't start with lid open, lid locks during spin cycle.

  • Durable hydraulic transmission.

  • Pneumatic brake.

  • 5HP 230/460 volt 3 phase motor.

As of this writing, this REFURBISHED BOCK FP90 spinner is in stock at Alard, in EXCELLENT operational, electrical, mechanical and cosmetic condition, ready to go and available for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular fresh-cut / pre-cut produce packing equipment needs.

Alard item reference #:Y4000

Groen 2000 gallon steam jacketed KETTLE with INA agitator, Y4397


GROEN INA/2-200,
200 gallon STEAM JACKETED KETTLE
with INCLINED SCRAPER-AGITATOR...




A 200 gallon capacity dual-zone 100 psi steam-jacketed cooking kettle with INA scrape-surface agitation, USDA food grade sanitary stainless steel, with sanitary discharge valve and temperature probe port...


FEATURES:

  • 42 inch diameter by 45 inch deep hemispherical bottom vessel with 3 inch center bottom outlet.

  • Dual zone steam jacket manufacturer tagged and National Board coded for 100 psi working pressure.

  • y4397h_crop_email.jpgInclined scraper-agitator with drive geared for 33 RPM at the INA agitator.

  • Sanitary flush-bottom discharge valve with threaded connections, pneumatically operated.

  • Temperature probe port.

  • All USDA sanitary food grade stainless steel construction, including the (3) pipe legs.

  • y4397l_crop_email.jpg1.5HP 208 / 230 / 460 volt 3 phase agitator drive motor.

As of this writing, this Groen 200 gallon kettle with scraper agitator is in stock at ALARD, in EXCELLENT operational, mechanical & cosmetic condition, available for timely shipment.

CALL 315-589-4511 to confirm availability and discuss your particular food process cooking kettle needs.

ALARD item reference #: Y4397

Bock FP-90 SPIN DRYER, Alard item Y4000


RECONDITIONED SPIN DRYER,

Bock Model FP-90...




The North Star Engineered Products (NSEP) Bock FP-90 Centrifuge is a food grade stainless steel centrifugal drying machine for drying washed fruits and vegetables, including leafy vegetables, whole or cut, in the context of an industrial pre-cut produce packing operation.


FEATURES:

  • 7.36 cubic foot removable basket which measures 30 inches in diameter by 18 inches deep; with a 23 inch top opening.

    • Louvered basket perforations pull moisture out of the basket and away from the product.

    • y4000s_crop_email.jpgLifting "ears" on each side of the basket provide for overhead winch lift-out and easy swivel-dumping action.

  • Manufacturer rated 130 lb (dry weight) batch capacity, and up to 1,950 lbs of product per hour.

  • Food grade stainless steel product contacts including basket, tank, and base, with painted steel legs.

  • Lid-opening assist cylinders (new).

  • y4000n_crop_email.jpgIncludes (new) operator controls with 10 minute settable timer, and safety interlock system. Machine won't start with lid open, lid locks during spin cycle.

  • Durable hydraulic transmission.

  • Pneumatic brake.

  • 5HP 230/460 volt 3 phase motor..


As of this writing, this REFURBISHED BOCK FP90 spinner is in stock at Alard, in EXCELLENT operational, electrical, mechanical and cosmetic condition, ready to go and available for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular fresh-cut / pre-cut produce packing equipment needs.

Alard item reference #:Y4000

Urschel Comitrol 1700, 15HP, slice head, Y3873

Urschel
COMITROL PROCESSOR Model 1700,
15HP, with slicing head...




The Urschel Comitrol 1700 continuous food grade milling machine is manufacturer recommended (with cutting parts specific to applciaiton) for particle size reduction of free-flowing products for fruit & vegetable purees, slurries, pastes, pate, mustard, peanut butter, ketchup, baby food, horseradish, dressings, textured vegetable protein, gels, ointments, creams, liquefying, dispersing, emulsifying, etc.



FEATURES:

  • Cone hopper infeed, with safety grid in hopper.

  • Set with 30 paddle impeller and 11 blade adjustable SLICE head.

  • y3873f_crop_email.jpgManufacturer literature indicates the adjustable slicing head cuts a range from .02 inch inch (.5mm) to .060 inch (1.5mm).

  • Per manufacturer literature, maximum product input size is determined by the type of cutting head, the impeller used, and spacing within the head, but maximum input size for the slicing head configuration is 3/8 inch (9.5mm) in any dimension.

  • A wide selection of slice heads, impellers, and other change parts are available for this machine to accommodate a variety of products and cuts. CALL 315-589-4511 do discuss your particular food process particle size reduction application.

  • Grease bearings for smooth operation of high-speed cutting head.

  • Continuous operation for uninterrupted production.

  • Simplified design for ease of cleaning and maintenance.

  • Gasketed PVC electrical control with safety interlock system.

  • Food grade sanitary stainless steel construction including support frame.

  • 15HP drive with brakemotor.

  • 230 volt 3 phase electrical input to control panel.


As of this writing, this Urschel mill is in stock at ALARD, in EXCELLENT operational, mechanical, electrical & cosmetic condition, available for immediate shipment.

CALL 315-589-4511 to confirm availability and discuss your food process cutting, slicing, and milling machine needs.

ALARD item reference #: Y3873


USDA food grade sanitary stainless steel 48 inch BIN DUMPER, y4437


BIN DUMPER / TOTE DUMPER,
USDA food grade sanitary stainless steel,
for up to 48 inch wide bins,
with hydraulic power;
--IN STOCK NEW.




Food grade USDA sanitary stainless steel forward bulk box dumper, for discharging vegetables, fruits, food products, or other bulk materials from heavy bins, pallet boxes, crates, totes, and/or Gaylords. Typically used as a raw product infeed dumper for industrial food processing applications. In stock new and available for fast delivery.



FEATURING:

  • Sized for 48 inch wide or smaller totes, with bin-holder measuring 54 inches wide by 48 inches long by 42 inches deep.

  • Manually adjustable hold-down bar with adjustment steps for 28.5 inches high, 35.5 inch bin height, and 53.5 inches high bin clearance. Other hold-down settings can be provided on request; --CALL 315-589-4511 with your tote size specifications.

  • Food grade stainless steel dumper construction, with USDA sanitary welds on all product contact surfaces (i.e. in the bin holder); with continuously welded smooth seams all around the interior.

  • Heavy duty tubular stainless frame construction.

  • y4437_crop_email.jpgDump action provided by (2) 3.5-inch diameter hydraulic cylinders powered by a self-contained 2HP hydraulic power pack with reservoir and manual controls, set for 208 / 230 / 460 volt 3 phase electrical input (unless otherwise specified).

  • Comes set for FLOOR LEVEL INFEED with a 38 inch pivot point and a 40 inch dump height from the edge of the dumper in a 45 degree fully inverted position (overall height and dump height from bin depend on the height of the bin). Support stands to raise the height of the dumper are available as an option and will be quoted upon request, based on customer specifications. Call 315-589-4511 to discuss your specific bulk food product container dumping need.


As of this writing this NEW pallet box dumper is in stock at Alard, complete, ready to go and available from inventory for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular food grade bulk material handling needs.

Alard item reference #:Y4437


Produce INSPECTION CONVEYOR, trim table, 6-8 person, stainless steel, Y4502

New Food Grade
FRUIT and VEGETABLE INSPECTION CONVEYOR,
12x24, 6 to 8 person, stainless steel...

VIDEO DEMO
Fruit and vegetable INSPECTION CONVEYOR,
trim table, 6-8 person, item reference / stock number Y4502
from Alard Equipment Corporation.


A single-level conveyorized food process inspection table with a 12 foot long by 24 inch wide conveyor belt running between 9 foot long UHMW plastic work surfaces. Ideal as a trim line for fruit and vegetable inspection, trimming, coring, sorting, and rework, sized for six to eight workstations...


FEATURES:

  • 12 foot long by 24 wide solid interlocking plastic chain type conveyor belt running between 1 3/8" high stainless steel sides.

  • High density plastic work shelves, 9 inches wide by 9 feet long, sized for six to eight person work-stations.

  • Work surfaces and inspection belt at a 37 inch working height on adjustable height feet (adjustable for approximately 32 inches to 40 inches).

  • Gasketed fiberglass control box with on / off buttons and variable speed control adjustable for up to 45 feet per minute.

  • Shown in video with standard painted steel motor and heavy duty painted steel gearbox.

    y4502_optional_wash-down_drive_crop_email.jpgAlso available with optional wash-down stainless steel motor (pictured at right) with corrsion-resistant aluminum gearbox. CALL 315-589-4511 to discuss your food process inspection and sorting conveyor specifications.

  • Food grade stainless steel construction.

As of this writing, this fresh produce inspection table, coring conveyor, trim line, is in stock at Alard, avalable NEW for immediate shipment.

Please note that other configurations are available on a build-to-order basis e.g. sizes, with lane dividers, multi level, waste cups, waste chutes, other belt speeds, etc.

CALL 315-589-4511 to confirm availability, and to discuss your particular particular food product inspection, sorting, trimming and coring needs.


Alard item reference #:Y4502

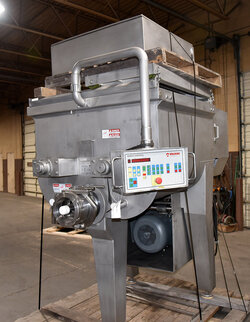

1000 pound Wolfking MEAT MIXER-GRINDER, 850 liter, 40HP, stainless steel, Y4172

Wolfking MIXER-GRINDER, model TSMG-850-200,
850 liter, 40HP.

DEMO VIDEO
Wolfking MIXER-GRINDER TSMG-850-200 Y4172
from Alard Equipment Corporation.


A Wolfking stainless steel meat mixer-grinder with twin shaft paddle mixer, bottom feed auger, and barrel, all stainless steel...


FEATURES:

  • MIXER
    • y4172y_crop_email.jpgDual shaft PADDLE mixer with nine (9) paddles per shaft.
    • W-bottom mixing vessel is 44 inches long by 44 inches wide by 32.5 inches deep.
    • Nominal 850 liters / 1,100 lbs capacity.
    • Sliding safety grid (on rollers).
    • Dual (2) new 5HP paddle agitator shaft drives.

  • y4172q_crop_email.jpgGRINDER
    • New stainless steel grinder barrel with new stainless steel auger, cutting knife, and discharge end.
    • 6.75-inch diameter grinder barrel.
    • 40HP 3 phase motor drive.

  • MIXER-GRINDER SYSTEM
    • Throughput capacity 6,500 to 13,500 lbs per hour.
    • Food grade USDA sanitary stainless steel construction, including legs.
    • Operator control panel on articularing arm.
    • y4172s_crop_email.jpgStandalone stainless steel electrical box complete with operating components, and safety interlock system.
    • Electrical requirements: 460 volt 3-phase, clean 110 volt single-phase (standard household current) control circuit.
    • Complete but for a grinding plate, which is readily available to buyer specification. CALL 315-589-4511 to discuss your particular industrial food process grinding requirements.


As of this writing, this Wolfking TSMG850 MIXER-GRINDER is in stock at Alard, in EXCELLENT operational, mechanical, electrical, and cosmetic condition, available for immediate shipment.

CALL 315-589-4511 to confirm availability, and to discuss your particular food equipment needs.

Alard item reference #: Y4172

Urschel Comitrol 1700, 30HP, cutting head, Y4508

Urschel Comitrol Processor Model 1700, 30HP,
with 3-inch CUTTING HEAD.

DEMO VIDEO
Urschel Comitrol 1700 30HP cutting cream corn

from Alard Equipment Corporation.


Urschel Comitrol 1700 continuous food grade milling machine, manufacturer recommended (with cutting parts specific to application) for particle size reduction of free-flowing products for granulation, slurries, pastes, patees, bakery product reworks, comminuting, granulating, milling, flaking, slicing, liquefying, dispersing, emulsifying, etc...


Manufacturer recommends (with cutting parts specific to application) for peanut butter, chicken slurries, baby food, dehydrated potato flakes, fruit and vegetable pastes, horseradish and dressings, extruded products, textured vegetable protein, biscuits and cookies, nuts, fruit pulp, various spices, corn masa, hard cheeses, and a variety of gels, ointments, and creams.

FEATURES:

  • Set up for Urschel Comitrol CUTTING HEAD for which a variety of sizes of cut heads and impellers are available for a wide range of product applications, with cutting dimensions from .010 inch (254mm) up to 1.5 inch cuts from product up to 2.5 inches (63.5mm) in size. We also have Comitrol mills in stock with slicing heads for slice cuts, or Microcut heads for very small particle size cuts. CALL 315-589-4511 to discuss your specific cutting specifications.

  • Cone hopper infeed (can optionally be fitted with a pipe feed for pump-fed applications) with safety grid.

  • Food grade USDA sanitary.

  • Stainless steel construction including support frame.

  • Complete with oil mist lubrication system.

  • 30 HP 3-phase brakemotor drive.

  • Gasketed stainless steel factory electrical control box with safety interlock system (being refurbished, not shown in video).

  • Set for 460 volt 3 phase electrical input.


As of this writing, this Urschel mill is in stock at Alard, in very good operational condition, available for timely shipment.

CALL 315-589-4511
to confirm availability, and discuss your particular industrial food process particle size reduction needs.

Alard item reference #: Y4508

About this Archive

This page is an archive of entries from March 2020 listed from newest to oldest.

February 2020 is the previous archive.

April 2020 is the next archive.

Find recent content on the main index or look in the archives to find all content.


JOIN our
no-more-than-monthly

Email list!
Email PRIVACY explanation link!

ALARD EQUIPMENT CORP
6483 Lake Avenue
Williamson, NY  14589
315-589-4511
315-589-3871 (fax)
