STAINLESS STEEL FOOD PUMP
with FEED TANK and DRIVE...
on picture(s) to enlarge!
on picture(s) to enlarge!

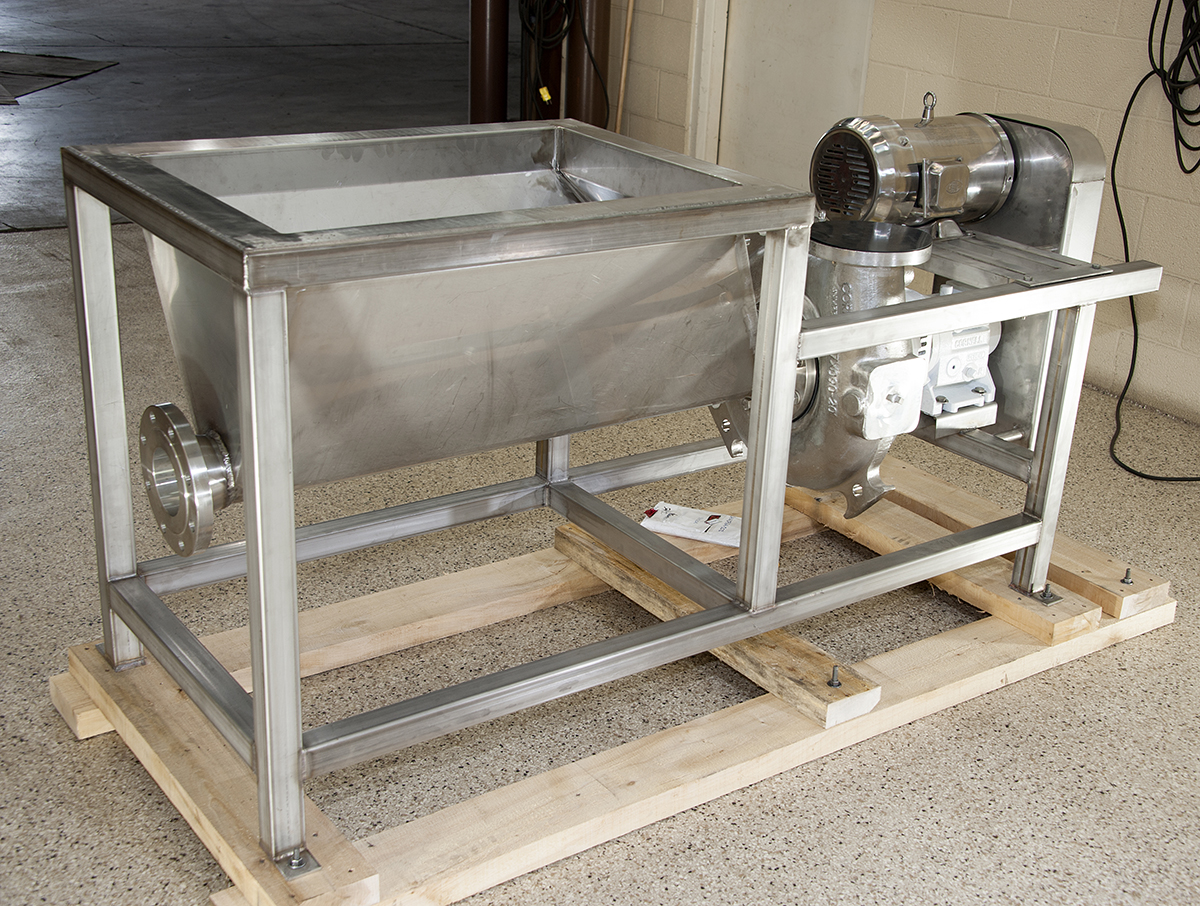

A Cornell Model 4NMPP-F5K-SS, stainless steel hydro transport
coupled with a stainless steel vortex product in-feed tank, and a 5 HP
motor, with 4 inch inlet and outlet connections. This "flume kit"
configuration is an excellent foundation for a pipe flume, open flume,
wash flume, chill flume, disinfectant bath, or other water conveyor
configuration for gently conveying high volumes of whole or cut food
products in water at tons-per-hour volume capacities.
100 to 800 gallons per minute
depending on RPM and head resistance (pump curves available on request,
and we can configure the pump drive horsepower and speed to order
based on your needs, call 315-589-4511
to discuss your specifications), with whole or cut food product /
solids handling ability for up to 2.94 inches (74.7mm)in diameter
by 4 inches (171.6mm) long.
Designed and manufactured with the sole purpose
of pumping food products. Ideal for agricultural applications such as
fruit washing and packing as well as food manufacturing operations such
as whole or cut food product conveying, cooling and / or sanitization
in water applications.
"PP" model indicates that this is Cornell's
patented "expanded volute" model which provides the gentlest product
handling in their line e.g. for delicate food products.
This offset expanded volute stainless steel food
manufacturer recommended as capable of gently conveying-in-water whole
or cut food products including potatoes, French fries, potato chips,
live fish, cranberries, carrots, apples, cherries, peas, broccoli,
crayfish, shrimp, lettuce, green beans, nuts, peppers, olives,
cucumbers, raisins, beans, corn, peaches, beets, oranges, and more
(larger products may require a larger pump;--see size specification of
this specific pump above). Please note we stock several sizes of
Cornell food pump; call
315-589-4511 to discuss your food product-in-water transport
304 stainless steel pump,
with 304 stainless steel single port impeller for handling whole
or precut / processed foods.
304 stainless steel pump backplate, for all food
grade stainless steel product contacts.
This Cornell food pump has 4 inch flanged suction
inlet and discharge outlet connections appropriate for a 4 inch water
Cornell's patented "Cycloseal" is included,
featuring easily replaced mechanical tungsten against silicon seals,
with no packing, no flush water loss, and reduced pump wear.
The stainless steel product feed tank is 42
inches long by 32 inches wide by 21 inches deep; with a 2 inch bottom
sanitation drain, with valve, for cleaning.
35 inch tank infeed height.
Bolted flange connection between vortex tank and
Food pump, tank, and drive mounted together on a
common tubular stainless steel frame.
All food grade stainless steel pump, tank
5 horsepower belt and pulley drive, 208/230/460
volt 3 phase electrical input (we can configure the pump drive
horsepower and speed to order based on your needs, call 315-589-4511 to discuss your
The stainless steel hydro transfer food pump is
NEW with a two-year manufacturer warranty.
Cornell hydro transport food pump is frequently employed to power open
water flume systems, while others, pump into a closed pipe
flume, which they run in a coil pattern on the ceiling to conserve
floor space. The flumes provide hold time to remove heat, and extend
exposure to the water, which usually includes either a sanitizing
agent, or a preservative solution such as vitamin C; depending on the
product. The power of the Cornell Hydro-Transport pump allows food
producers to deliver their now chilled and treated ingredients to any
point in the plant where they want to dry, mix and pack the final
Others use the chill flume for pre-cooling blanched (very lightly
cooked to kill the active enzymes) food products in water prior to
running them through an IQF freeze tunnel. Others use the cooling flume
just to convey product in water.
In every case, the powerful Cornell
pump can gently move high tons-per-hour output to wherever it needs to
go in the plant.
Alard also stocks and handles various kinds of dewatering,
solids-separation, water recovery and filtration equipment to recover
the food product from the pump water, and to recapture, treat and
recirculate the water as necessary, as well as drying and packaging
equipment to complete the process; all tailored to the end-user's
specific food product(s) and application.
With Cornell's large range of hydro-transport pump size and material
configurations, and with Alard's ability to configure and "gear" the
pump to the buyer's specific needs, Alard's Cornell Hydro-Transport
based flume kits are a superb tool for a wide variety of industrial
food processing applications.
Generally in stock at Alard; --new, fully assembled and available for
CALL 315-589-4511 to
confirm current availability, and to discuss your particular food
process bulk product conveying, chilling, cooling, sanitizing and
pumping equipment needs.
item reference #: Y4339
