24-ROLL ROTATING CAGE PEELER-WASHER
with full length metering auger, stainless steel...
WALKAROUND VIDEO of
Magnuson NF-24 rolling-cage PEELER-WASHER,
in-stock, at Alard Equipment Corporation
Alard item Y4892
on picture(s) to enlarge!
on picture(s) to enlarge!

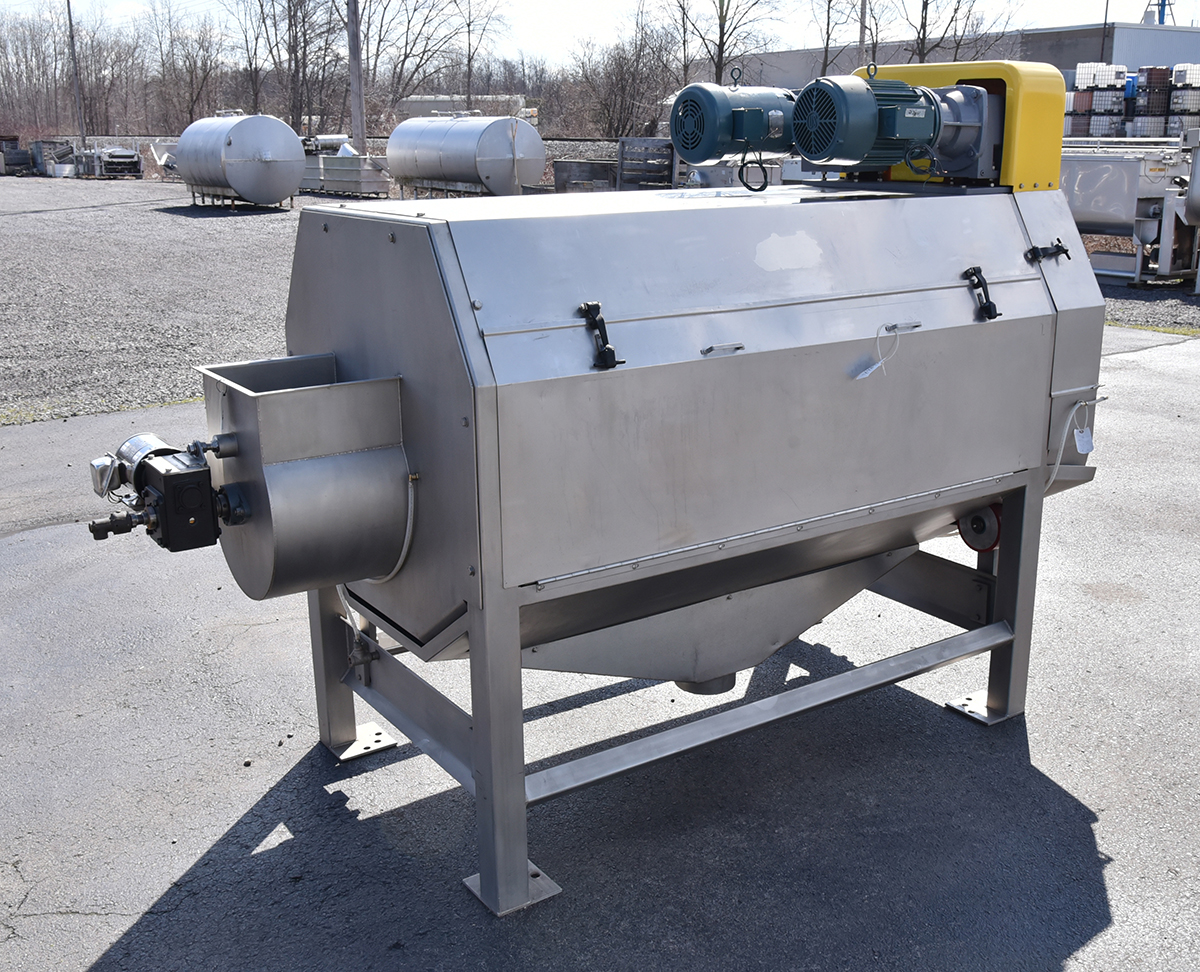

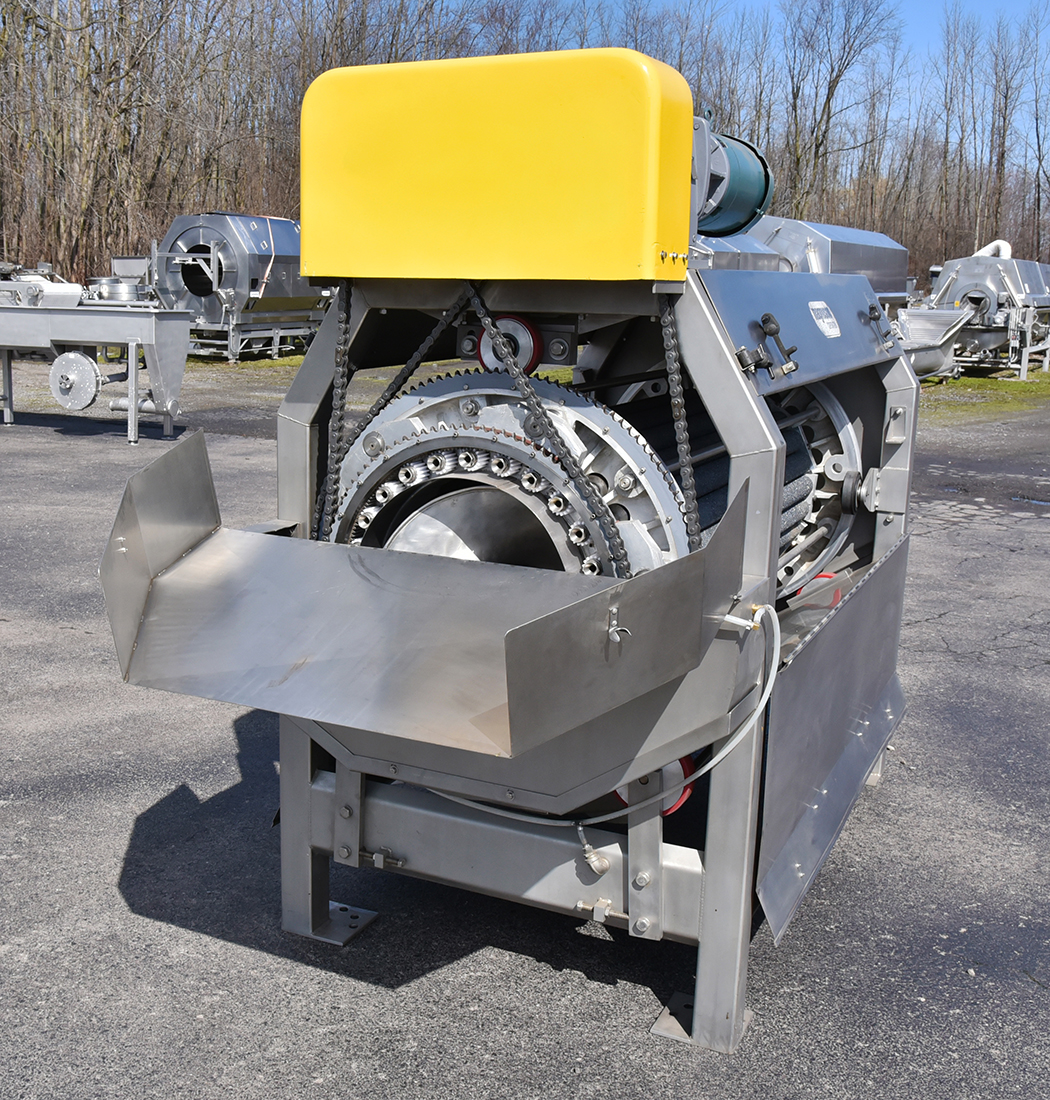

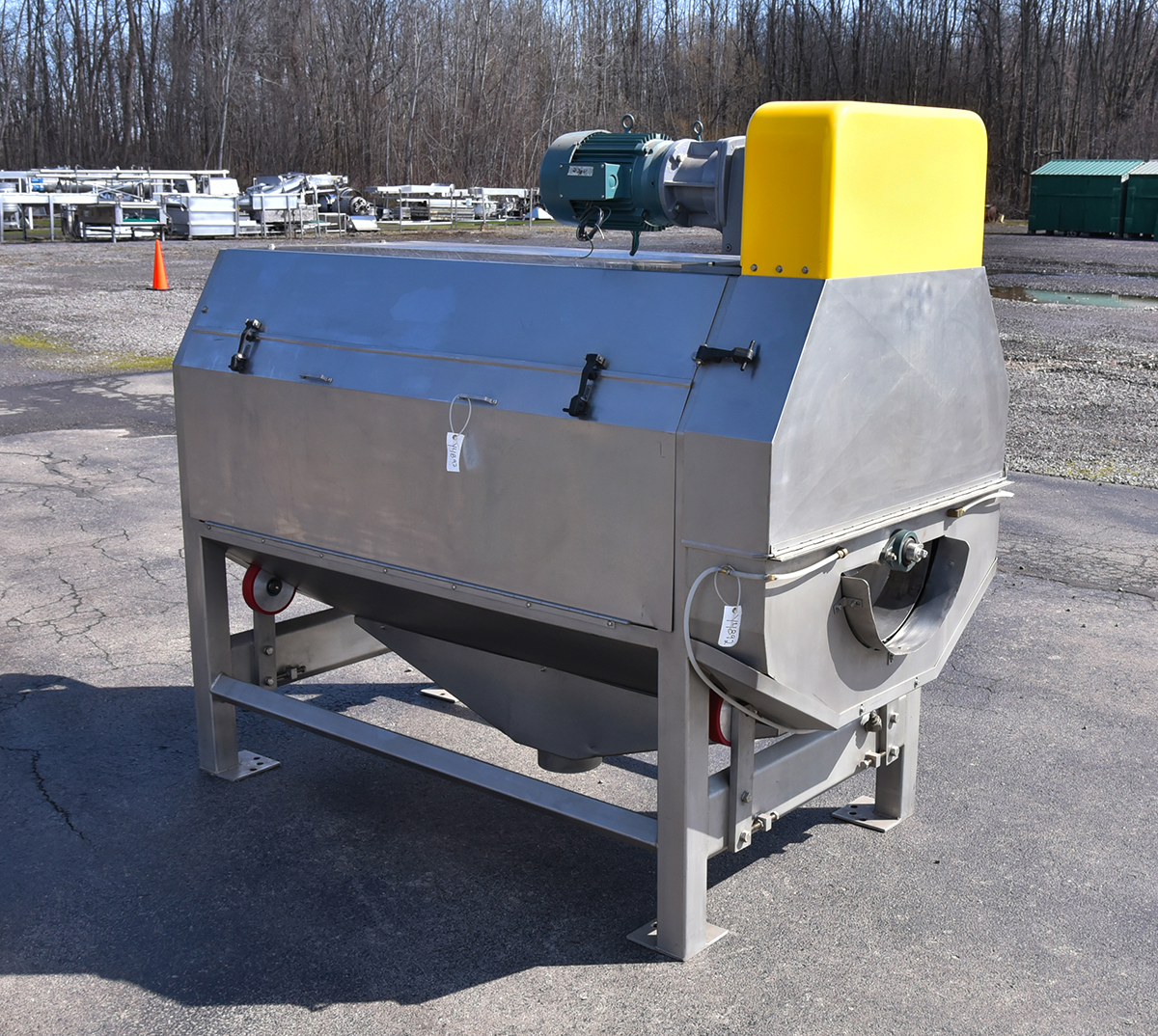

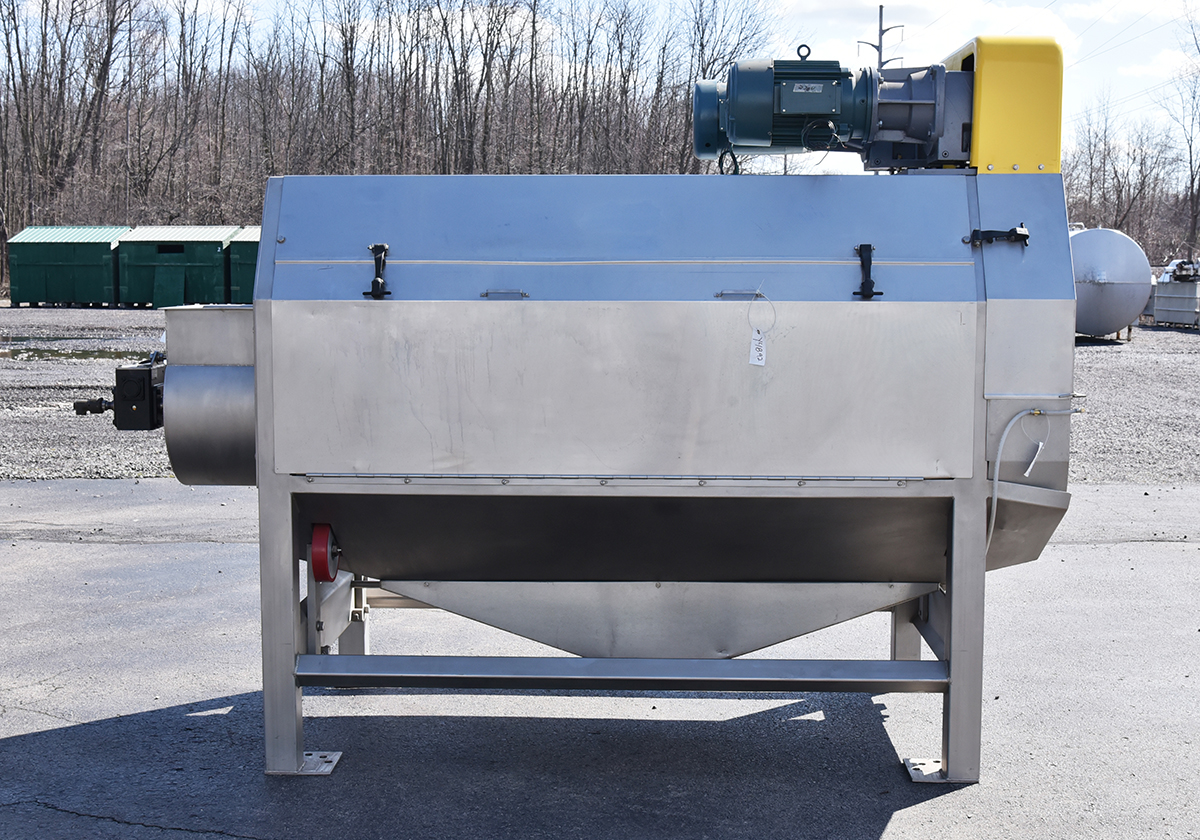

refurbished Magnuson Model NF-24
twenty-four roll continuous abrasive
peeler / brush-washer / scrubber consists of twenty-four (24) 3
diameter by 6 foot long rolls arranged in a circular "rolling cage".
The rolls counter-rotate with the rolling cage for high volume
throughput, while the small diameter closely spaced rolls provide for
high quality and versatility in peeling or brush scrubbing a wide range
of products. Manufacturer advertising shows use on pickles, apples,
potatoes, onions, carrots, baby carrots, pistachios, tomatoes, peaches
of this writing, this reconditioned abrasive roll cage peeler is in
stock at ALARD, in EXCELLENT operational, mechanical, electrical &
cosmetic condition, available for immediate shipment without controls
(buyer must agree in writing to install a safety interlock system);
--OR can be completed with an operator control box set to buyer voltage
specification, with variable speed controls and a safety interlock
system prior to shipment. Call 315-589-4511 to discuss your lead time
and voltage needs.
- Configured with twenty four (24) NEW abrasive
grit 3 inch diameter by 72 inch long
rolls mounted parallel (in-line) with
- The peeling / scrubbing action is powered by two (2) 7.5 HP belt drive motors
- one rotates the cage and the other
drives the rolls.
- 17 inch long by 15 inch wide infeed at
approximately 56 inches high.
- Full length
metering auger with 3/4HP
stainless steel shrouded drive - to provide uniform product exposure
time in the peeling chamber.
- Lubricating and rinsing action is provided in the
chamber by a stainless steel water
spray pipe header with several
bronze spray nozzles.
- 31 inch discharge height.
- Water, peels and debris drop to a stainless-steel
full-length bottom collection pan with 8.5 inch diameter center bottom
- Hinged stainless steel side panels for ease of
maintenance and sanitation.
- Food grade sanitary stainless steel construction
peeler frame and body (abrasive rolls are abrasive-coated steel).
- 208/230 volt 3 phase electrical input.
CALL 315-589-4511 to confirm
availability and discuss your particular fruit and / or vegetable
item reference #: Y4892
Unless otherwise stated, volume, speed,
and/or capacity estimates given are those of the manufacturer(s) of the
equipment. All offers are subject to prior sales and owner's
confirmations. Unless otherwise specified, any prices shown do not
include skidding, crating, or freight.
